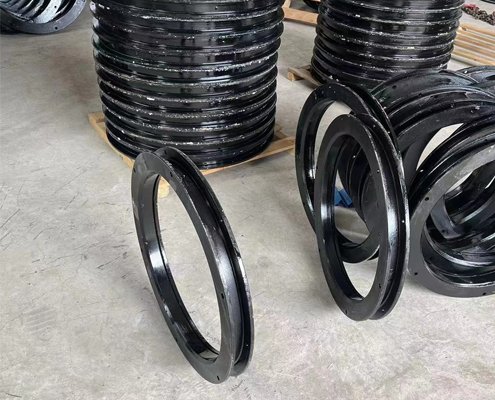

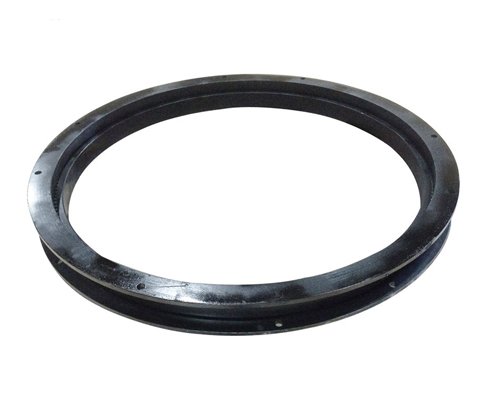

600mm Rotating Agricultural Trailer Turntable with Drawing
Technical Parameters:
Item No.: HQ-FT-TN01
Please contact [email protected] to ask for drawing and specific technical datas.
| Model | material | inner Diameter | Outter Diameter | Bearing weight |
|---|---|---|---|---|
| 300mm | 45# steel | 190mm | 300mm | 9 kgs |
| 320mm | 45# steel | 210mm | 320mm | 11 kgs |
| 360mm | 45# steel | 260mm | 360mm | 12 kgs |
| 400mm | 45# steel | 280mm | 400mm | 15 kgs |
| 430mm | 45# steel | 310mm | 430mm | 18 kgs |
| 500mm | 45# steel | 380mm | 500mm | 21 kgs |
| 600mm | 45# steel | 470mm | 600mm | 25 kgs |
| 650mm | 45# steel | 527mm | 650mm | 32 kgs |
| 700mm | 45# steel | 560mm | 700mm | 345 kgs |
